RBA Homes

.

Coastal Design Collection Floor Plans
Custom Modular Homes

Modular Home Floor Plans

This Collection of Homes is
Designed for Small Sized Jersey Shore Lots
and All Can Be Built On Pilings

Coastal Design Collection Floor Plans, The Spring Lake, modular home open floor plan, Monmouth County, NJ. The Spring Lake
2 Bedrooms, 2 Baths
Approx. 1028 sq. ft.
  Coastal Design Collection Floor Plans, The Sea Isle, modular home open floor plan, Monmouth County, NJ. The Sea Isle
3 Bedrooms, 1 Bath
Approx. 1043 sq. ft.

Coastal Design Collection Floor Plans, The Ocean View, modular home open floor plan, Monmouth County, NJ. The Ocean View
3 Bedrooms, 2 Baths
Approx. 1352 sq. ft.
  Coastal Design Collection Floor Plans, The Bay Cottage, modular home open floor plan, Monmouth County, NJ. The Bay Cottage
1-3 Bedrooms, 1-2 Baths*
Approx. 852* sq. ft.

Coastal Design Collection Floor Plans, The Surf City, modular home open floor plan, Monmouth County, NJ. The Surf City
3 Bedrooms, 2 Baths
Approx. 1488 sq. ft.
  Coastal Design Collection Floor Plans, The Beach Haven, modular home open floor plan, Monmouth County, NJ. The Beach Haven
4 Bedrooms, 2 Baths
Approx. 1560 sq. ft.

Coastal Design Collection Floor Plans, The Asbury Park, modular home open floor plan, Monmouth County, NJ. The Asbury Park
4 Bedrooms, 2 Baths
Approx. 1567 sq. ft.
  Coastal Design Collection Floor Plans, The Ocean Cottage, modular home open floor plan, Monmouth County, NJ. The Ocean Cottage
4 Bedrooms, 2 Baths
Approx. 1572 sq. ft.

Coastal Design Collection Floor Plans, The Bayshore, modular home open floor plan, Monmouth County, NJ. The Bayshore
3 Bedrooms, 2 Baths
Approx. 1576 sq. ft.
  Coastal Design Collection Floor Plans, The Bay Head I, modular home open floor plan, Monmouth County, NJ. The Bay Head I
3 Bedrooms, 2.5 Baths
Approx. 1611 sq. ft.

Coastal Design Collection Floor Plans, The Bay Head II, modular home open floor plan, Monmouth County, NJ. The Bay Head II
3 Bedrooms, 2.5 Baths
Approx. 1611 sq. ft.
  Coastal Design Collection Floor Plans, The Margate, modular home open floor plan, Monmouth County, NJ. The Margate
4 Bedrooms, 2.5 Baths
Approx. 1725 sq. ft.

Coastal Design Collection Floor Plans, The Brigantine, modular home open floor plan, Monmouth County, NJ. The Brigantine
3 Bedrooms, 3 Baths
Approx. 1954 sq. ft.
  Coastal Design Collection Floor Plans, The Ocean Grove, modular home open floor plan, Monmouth County, NJ. The Ocean Grove
4 Bedrooms, 2.5 Baths
Approx. 1976 sq. ft.

Coastal Design Collection Floor Plans, The Avalon, modular home open floor plan, Monmouth County, NJ. The Avalon
4 Bedrooms, 2.5 Baths
Approx. 1990 sq. ft.
  Coastal Design Collection Floor Plans, The Seaside I, modular home open floor plan, Monmouth County, NJ. The Seaside I
5 Bedrooms, 3.5 Baths
Approx. 2486 sq. ft.

Coastal Design Collection Floor Plans, The Seaside II, modular home open floor plan, Monmouth County, NJ. The Seaside II
5 Bedrooms, 3.5 Baths
Approx. 2486 sq. ft.

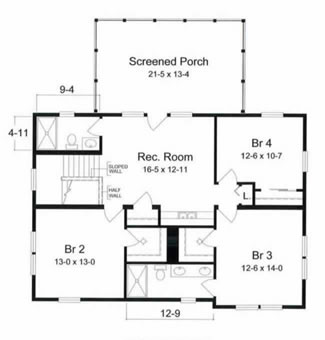

  Coastal Design Collection Floor Plans, The Belmar I, modular home open floor plan, Monmouth County, NJ.

The Belmar I
5 Bedrooms, 3.5 Baths
Approx. 2545 sq. ft.

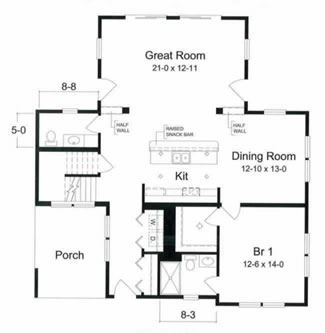

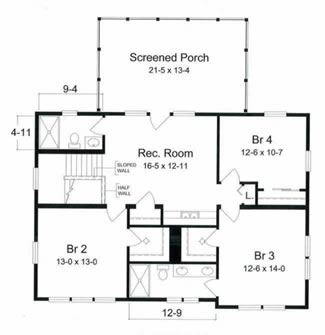

Coastal Design Collection Floor Plans, The Belmar II, modular home open floor plan, Monmouth County, NJ. The Belmar II
5 Bedrooms, 3.5 Baths
Approx. 2545 sq. ft.
  Coastal Design Collection Floor Plans, The Belmar III, modular home open floor plan, Monmouth County, NJ. The Belmar III
5 Bedrooms, 3.5 Baths
Approx. 2545 sq. ft.

Coastal Design Collection Floor Plans, The Sandpiper, modular home open floor plan, Monmouth County, NJ. The Sandpiper
2 Bedrooms, 1 Bath
Approx. 840 sq. ft.

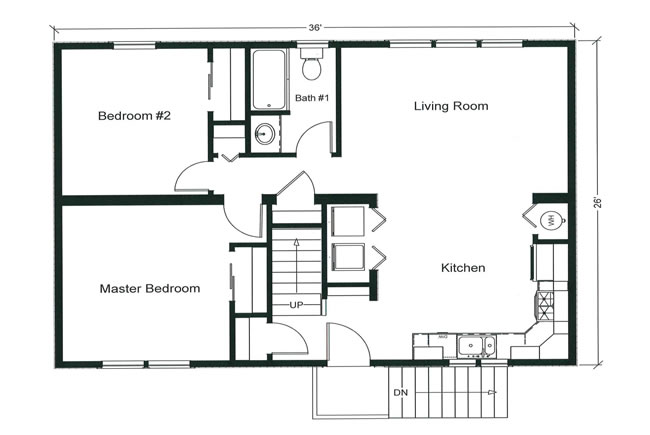

  Coastal Design Collection Floor Plan, The Seagull, modular home open floor plan, Monmouth County, NJ. The Seagull
2 Bedrooms, 1 Bath*
Approx. 950* sq. ft.

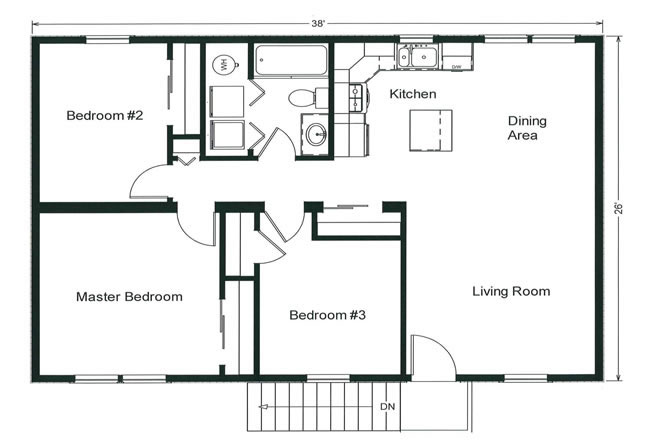

Coastal Design Collection Floor Plan, The Pelican, modular home open floor plan, Monmouth County, NJ. The Pelican
3 Bedrooms, 1 Bath
Approx. 1,000 sq. ft.
  Coastal Design Collection Floor Plans, The Osprey, modular home open floor plan, Monmouth County, NJ. The Osprey
3 Bedrooms, 2 Baths
Approx. 1,350 sq. ft.

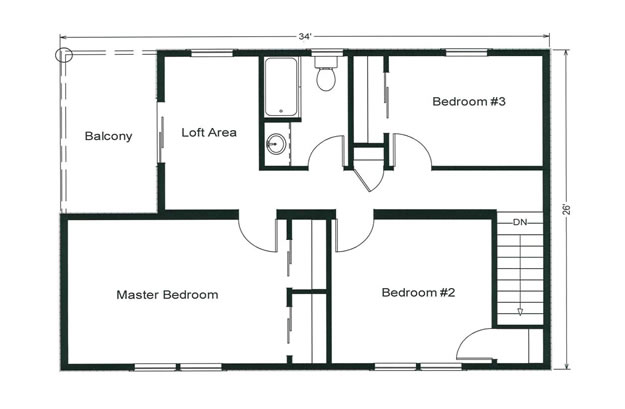

Coastal Design Collection Floor Plan, The Heron, modular home open floor plan, Monmouth County, NJ. The Heron
3 Bedrooms, 2 Baths

Approx. 1,790 sq. ft.



Open Floor Plan
Modular Home Floor Plans


top




This one story modular home was designed to include 1,028 square feet of living space.
Approximately 1,028 sq. ft. — One Story

Reminiscent of the beach cottage from days past, The Spring Lake is the perfect get away bungalow for your beach dream home or rental property..

THE SPRING LAKE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1028 Bedrooms: 2 Raised Foundation
  Full Baths: 2 Width: 15'-9"
    Length: 64’

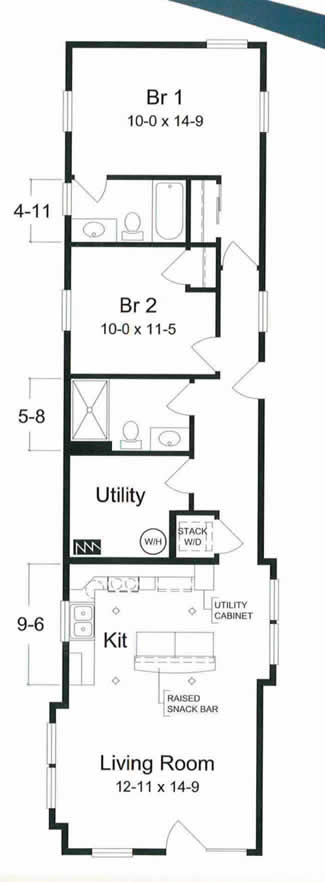

The Spring Late is a one level, 1028 square foot, 2 bedroom ranch style modular home designed for a 25 foot wide lot or larger, at an economical price.



top




This one story modular home was designed to include 1,043 square feet of living space.
Approximately 1,043 sq. ft. — One Story

Simplicity is the beauty of this traditional floor plan, open space for entertaining and three bedrooms for plenty of guests.

THE SEA ISLE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1043 Bedrooms:3 Raised Foundation
  Full Baths: 1 Width: 26'
    Length: 36/44’

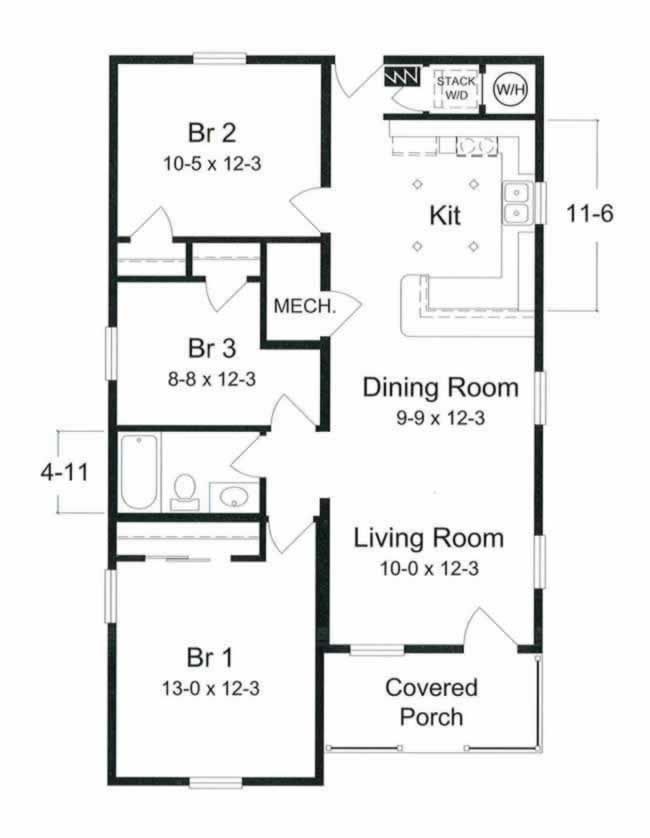

The Sea Isle coastal home is a comfortable one level, 3 bedroom, one bath home designed to meet the needs of those looking for an inexpensive modular home along the Jersey Shore.



top




This one story modular home was designed to include 1,352 square feet of living space.
Approximately 1,352 sq. ft. — One Story

Simple but elegant the Ocean View offers an open floor plan with three comfortable bedrooms.

THE OCEAN VIEW
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1352 Bedrooms:3 Raised Foundation
  Full Baths: 2 Width: 26'
    Length: 52'

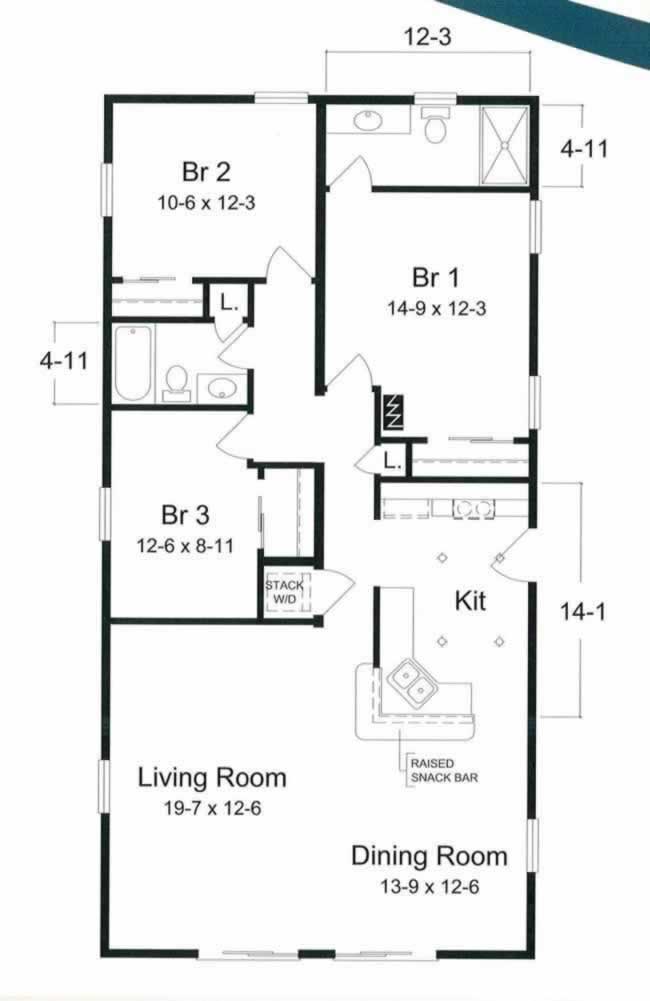

The Ocean View is another attractive one level, 3 bedroom, 2 bath, 1352 square foot ranch style home. The open floor plan is perfect for entertaining guests in the front section of the home with privacy in the rear bedroom area.



top




This two story modular home was designed to include 1,990 square feet of living space.
Approximately 852 sq. ft.* — Two Story

Plenty of room to grow in this traditional beach cottage with an open first floor and an unfinished second floor for future expansion for a Bunk Room or private bedrooms.

THE BAY COTTAGE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 852 Bedrooms: 1-3* Raised Foundation
Upper: unfinished attic* Full Baths: 1-2* Width: 27'-6"
    Length: 31’
* with unfinished 2nd Floor that can be finished,
adding 533 square feet of living space on top floor




The Bay Cottage Coastal designed modular constructed Cape home is an economical plan designed for future expansion capabilities. This floor plan of 852 square feet has one bedroom and one bath on the first floor.

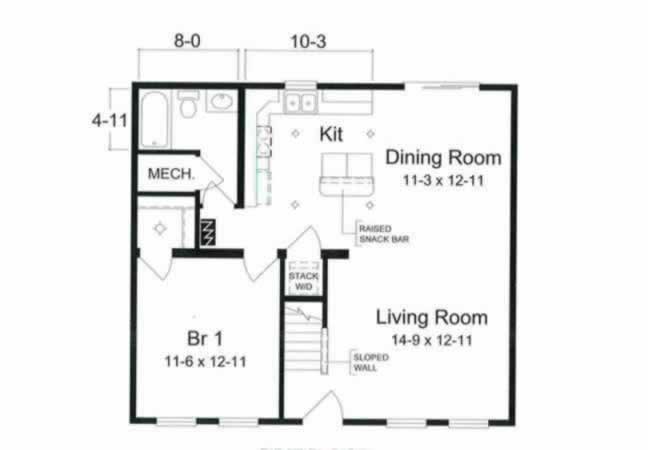

FIRST FLOOR

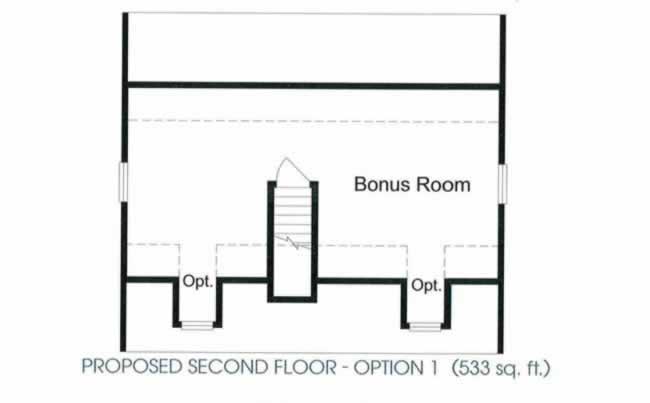

SECOND FLOOR - Option 1

The Bay Cottage also has an expandable second floor of approx. 533 square feet to create an additional 2 bedrooms and one bath.

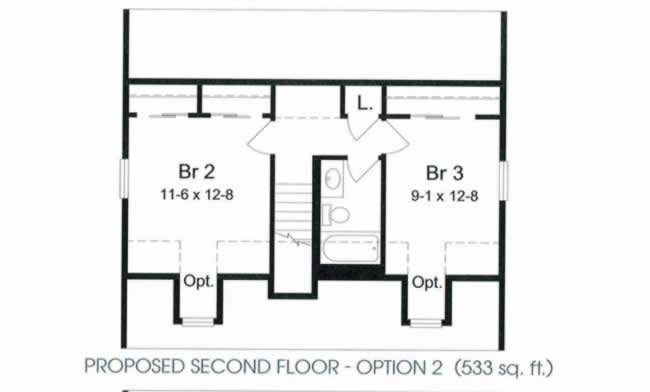

SECOND FLOOR - Option 2



top




This two story modular home was designed to include 1,488 square feet of living space.
Approximately 1,488 sq. ft. — Two Story

A classic design for a smaller building site gives you plenty of living space for everyone to enjoy.

THE SURF CITY
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 744 Bedrooms:3 Raised Foundation
Upper: 744 Full Baths: 2 Width: 20'
    Length: 43’

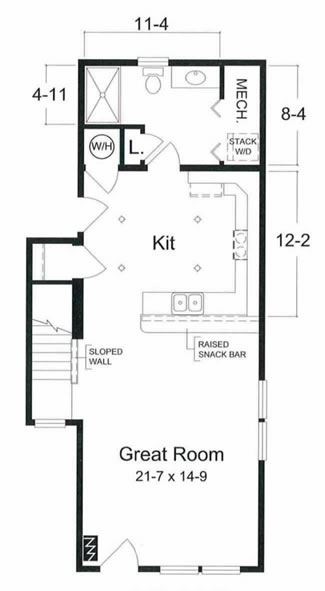

The Surf City Coastal designed two story 20 foot wide floor plan includes a huge great room and kitchen combination for wide open living space, perfect for a narrow lot location.



The Surf City Coastal designed two story modular home of 1488 square feet contains 3 bedrooms and 2 full baths. The second floor 3 bedrooms provide privacy while entertaining guests in the first floor great room.

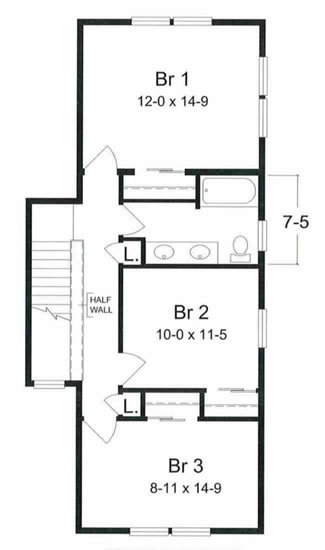

First Floor   Second Floor


top




This two story modular home was designed to include 1,560 square feet of living space.
Approximately 1,560 sq. ft. — Two Story

A compact home to fit a smaller building site, but still loaded with all the space needed for comfortable living. An open floor plan suitable for larger gatherings and four bedrooms for plenty of guests.

THE BEACH HAVEN
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 855 Bedrooms: 4 Raised Foundation
Upper: 705 Full Baths: 2 Width: 27'-6"
    Length: 31’





The Beach Haven is an attractive modular constructed two level Cape style home designed to accommodate many guests on a small building site.

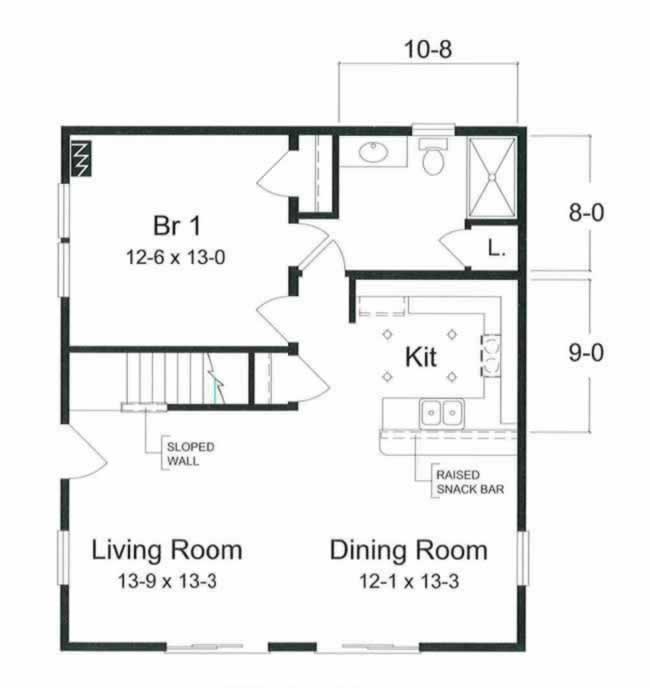

FIRST FLOOR

The Beach Haven features 4 bedrooms and 1560 sq. feet of living space, with the master bedroom and bath on the first floor.

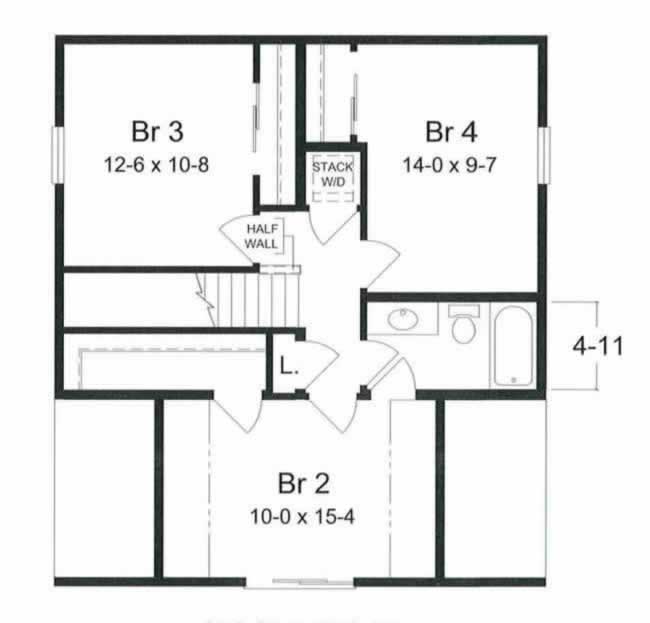

SECOND FLOOR



top




This two story modular home was designed to include 1,567 square feet of living space.
Approximately 1,567 sq. ft. — Two Story

A second floor Kitchen and great room allows cooking and entertaining while you enjoy the views from the deck, nobody has to miss any of the action! Four bedrooms on the first floor top off the perfect beach home.

THE ASBURY PARK
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 880 Bedrooms: 4 Raised Foundation
Upper: 687 Full Baths: 2 Width: 27'-6"
    Length: 25/32’





This four bedroom, two bath layout comprised of 1567 sq. ft. is perfect for entertaining family guests at the New Jersey Shore. The reverse living idea with kitchen, dining room and living room on the second floor, provides for an excellent view and entertaining capabilities.

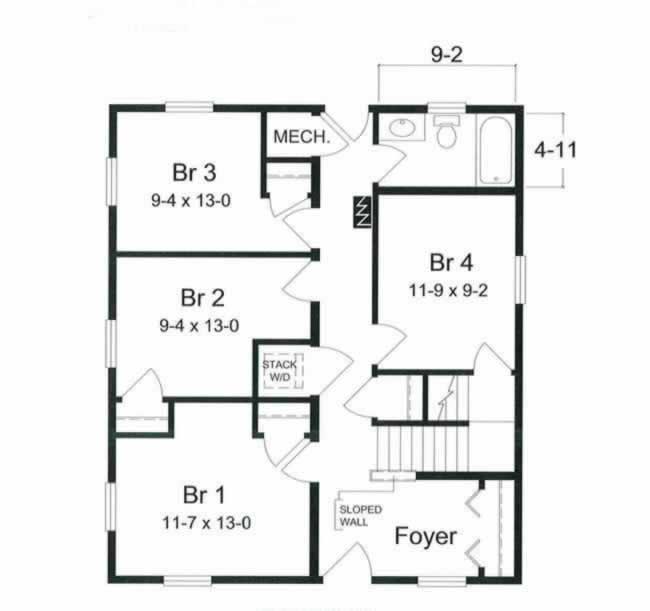

FIRST FLOOR

The Asbury Park is an attractive coastal designed modular home affording excellent views from the second story balcony and large deck on the first floor.

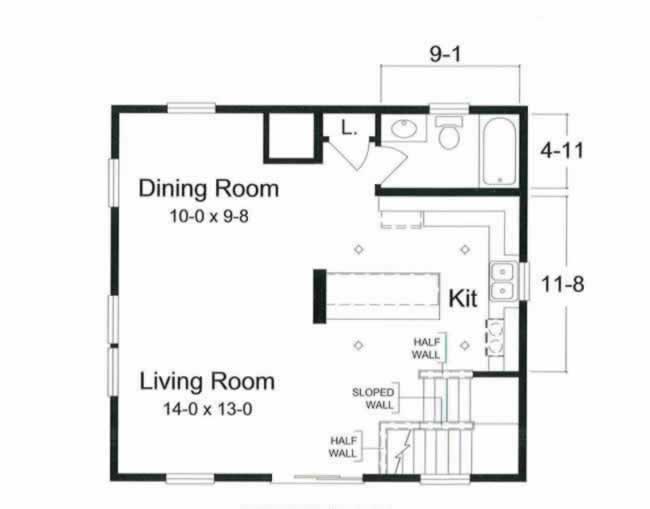

SECOND FLOOR



top




This two story modular home was designed to include 1,572 square feet of living space.
Approximately 1,572 sq. ft. — Two Story

Compact and functional with an open first floor design and two large bunk rooms on the seconf floor this cozy cottage makes the most of all of its space.

THE OCEAN COTTAGE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 852 Bedrooms:3 Raised Foundation
Upper: 720 Full Baths: 2 Width: 27-6'
    Length: 31’





The Ocean Cottage Coastal plan is a Cape Cod designed modular home of 1572 square feet. The large open kitchen, family and living rooms and covered front porch makes this design one of the most desirable modular homes built for Jersey Shore living.

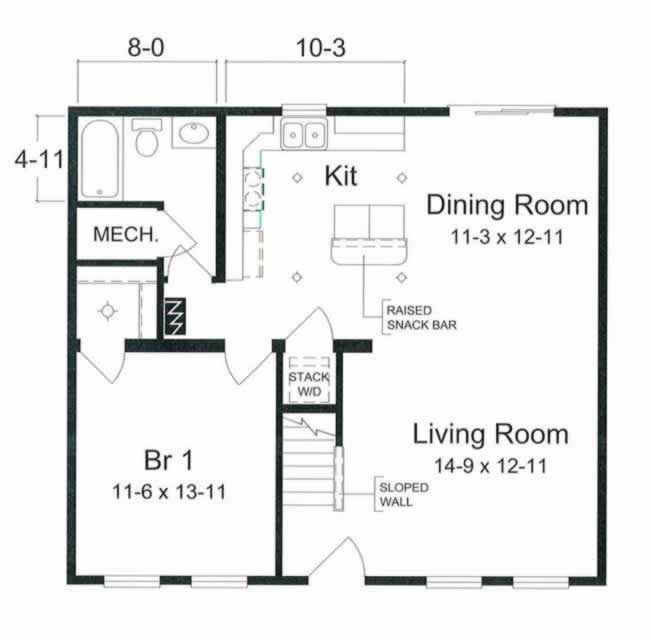

FIRST FLOOR

This plan offers great flexibility with 2 huge bedrooms and a bath on the second floor for maximum family lining.

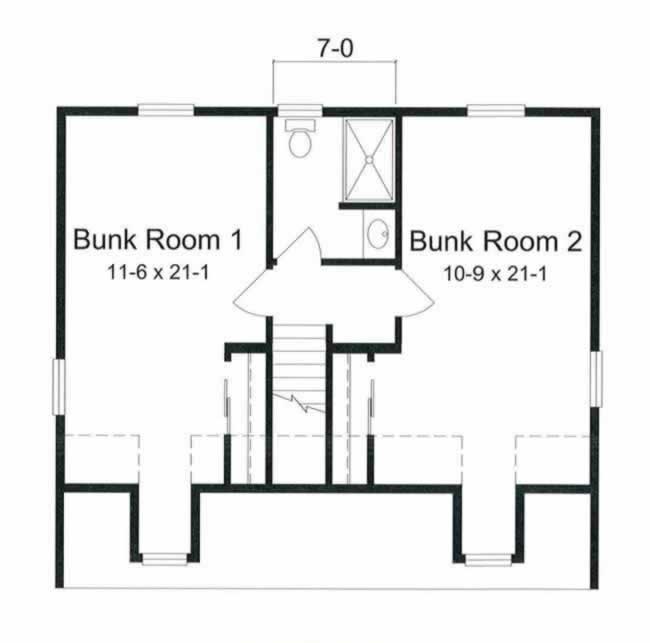

SECOND FLOOR



top




This two story modular home was designed to include 1,576 square feet of living space.
Approximately 1,576 sq. ft. — Two Story

A classic beach home with plenty of windows to enjoy the views from the vaulted great room.

THE BAYSHORE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1576 Bedrooms: 3 Raised Foundation
  Full Baths: 2 Width: 27'-6"
    Length: 56/58’

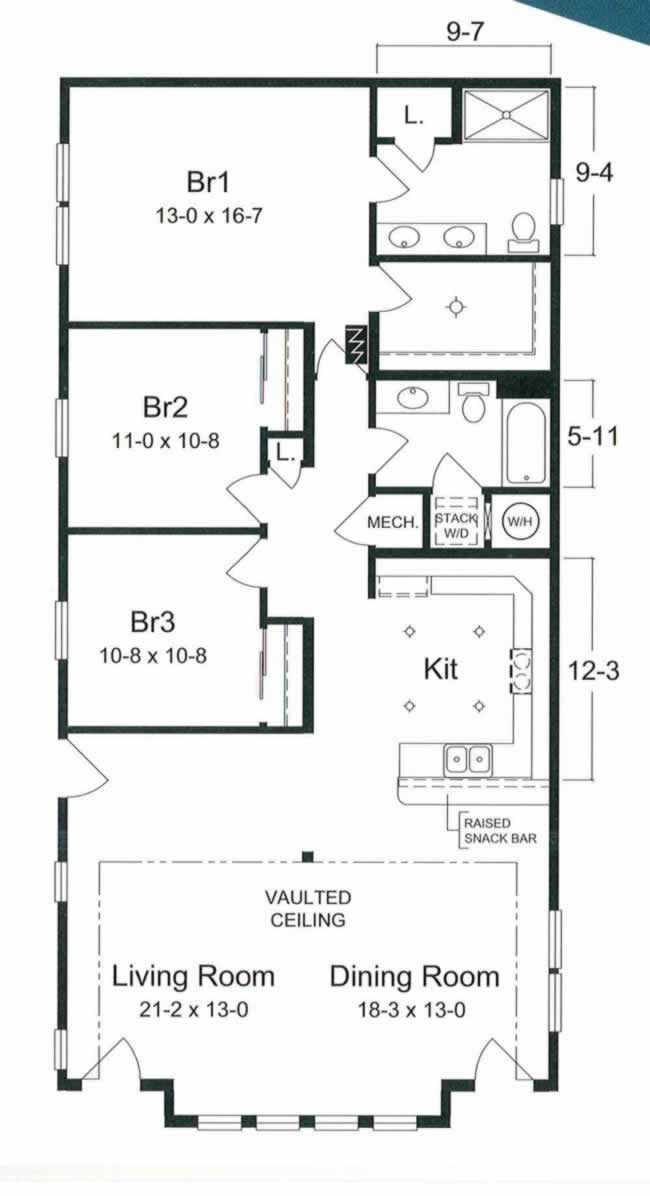

The Bayshore Costal home is an attractive one level, 3 bedroom, 2 bath home with a large vaulted ceiling. Comprised of two modular sections this 1576 square foot home is perfect for a 50 foot wide lot.


top




This two story modular home was designed to include 1,611 square feet of living space.
Approximately 1,611 sq. ft. — Two Story

An open floor plan allows all the space needed for unforgettable gatherings and entertaining. Windows galore will give you great views in all directions.

THE BAY HEAD I
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 992 Bedrooms: 3 Raised Foundation
Upper: 619 Full Baths: 2 Width: 23'-9"
    Length: 40/57’

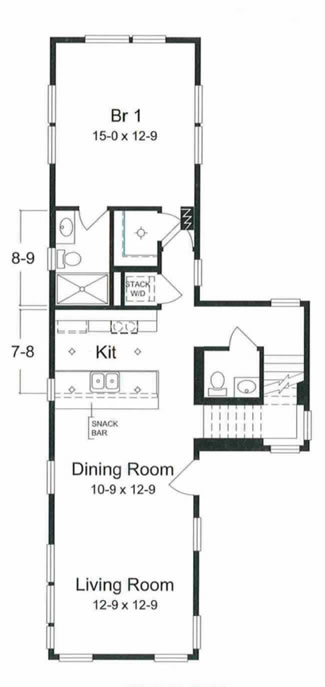

The floor plan of the Bay Head I provides a large living room, dining room and kitchen area for excellent entertaining capabilities. The approximately 15 X 13 foot bedroom in the rear of the first floor provides excellent privacy and serves as the master bedroom, all on one level.   The second floor consists of 2 bedrooms, a large bathroom and an open study area that can also serve as an extra bedroom for overnight guests.

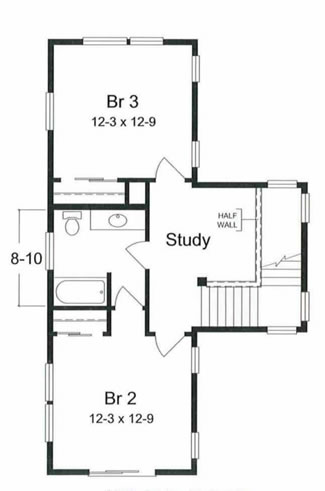

First Floor   Second Floor


top




This two story modular home was designed to include 1,611 square feet of living space.
Approximately 1,611 sq. ft. — Two Story

An open floor plan allows all the space needed for unforgettable gatherings and entertaining. Windows galore will give you great views in all directions.

THE BAY HEAD II
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 992 Bedrooms: 3 Raised Foundation
Upper: 619 Full Baths: 2 Width: 23'-9"
    Length: 40/57’

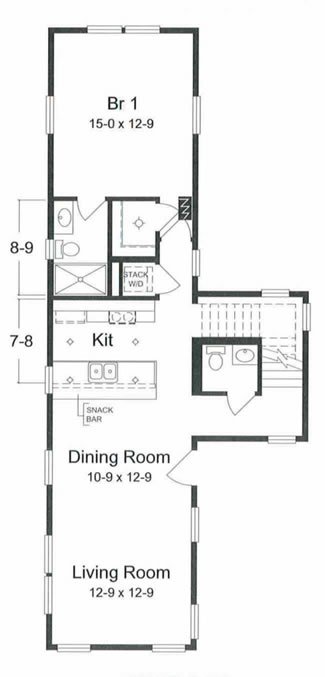

The floor plan of the Bay Head II consists of a large master bedroom of approximately 200 square feet, large open space comprising the kitchen, dining room and living room. This floor plan is perfect for shore area entertaining.   The second floor is comprised of two bedrooms, a large bathroom with tub shower combo and a great study or play area for the kids.

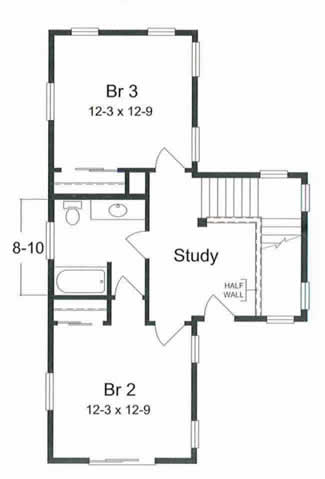

First Floor   Second Floor


top




This two story modular home was designed to include 1,725 square feet of living space.
Approximately 1,725 sq. ft. — Two Story

No Compromises needed for a smaller building site. The Brigantine is well suited for a narrow building lot but still has all the features to enjoy your time at the beach. With the main living area on the second floor, featuring an oversized kitched, this flexible floor plan has a home office, so you can mix pleasure with work. Three bathrooms and a roof top deck, this plan has it all.

THE MARGATE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 893 Bedrooms:4 Raised Foundation
Upper: 832 Full Baths: 2 Width: 24'
    Length: 36’

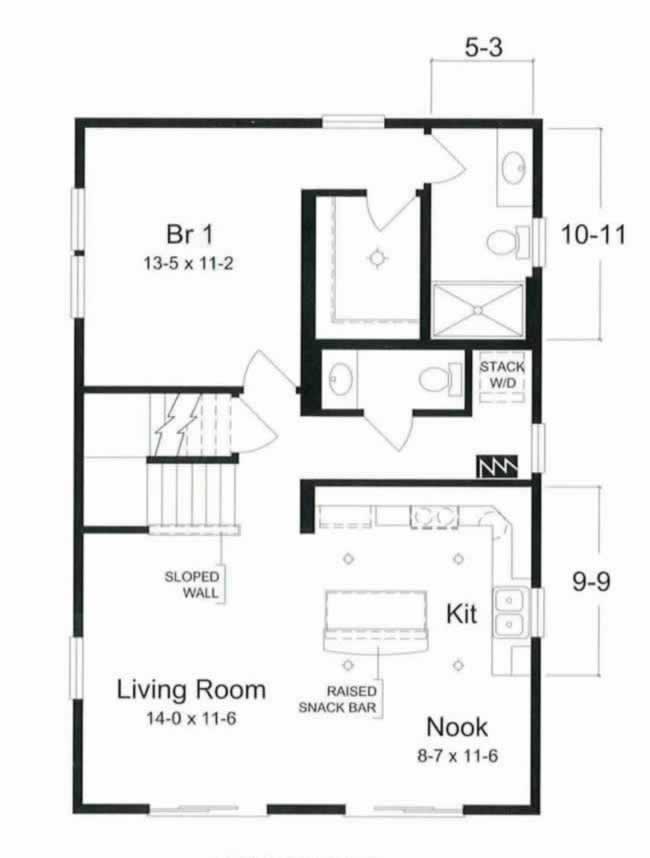

The Margate first floor plan consists of a large master bedroom on the first floor of this 1725 sq. ft. home. The first floor also includes an excellent entertainment area in the open living room, kitchen and nook area.
FIRST FLOOR

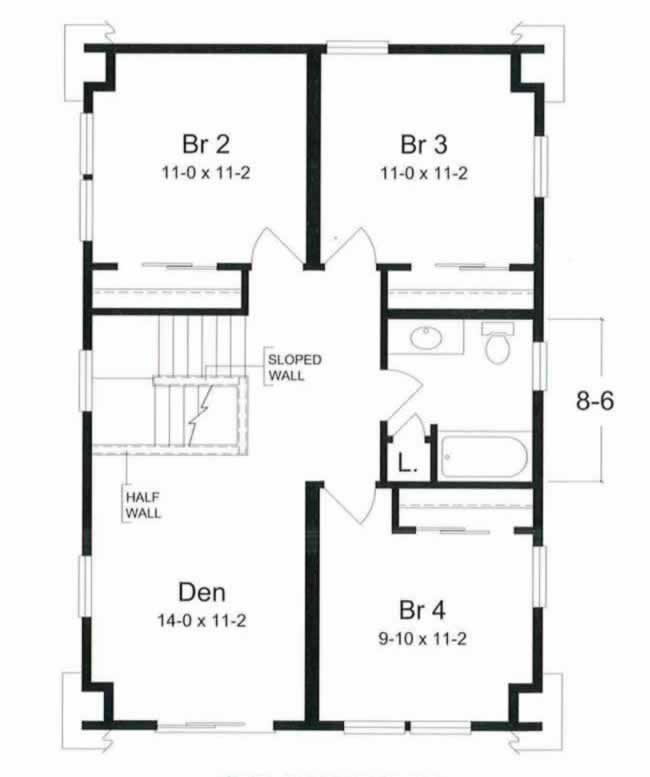

The second floor comprised of 3 bedrooms, a full bathroom and a den area which can also serve as a 5th bedroom, if needed in this shore area home.
SECOND FLOOR



top




This two story modular home was designed to include 1,954 square feet of living space.
Approximately 1,954 sq. ft. — Two Story

No Compromises needed for a smaller building site. The Brigantine is well suited for a narrow building lot but still has all the features to enjoy your time at the beach. With the main living area on the second floor, featuring an oversized kitched, this flexible floor plan has a home office, so you can mix pleasure with work. Three bathrooms and a roof top deck, this plan has it all.

THE BRIGANTINE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 977 Bedrooms: 3 Raised Foundation
Upper: 977 Full Baths: 3 Width: 15'-9"
    Length: 62’

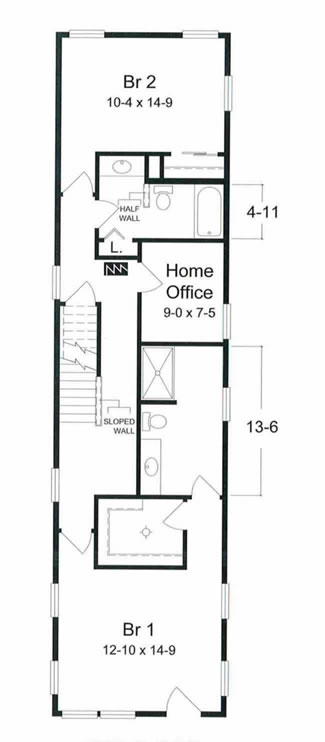

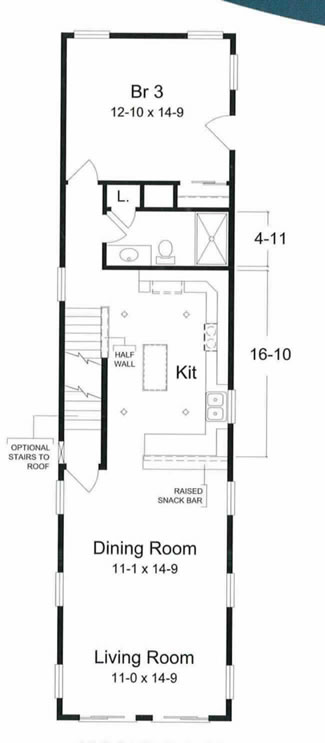

The first floor of the Brigantine floor plan consists of 2 bedrooms, 2 full baths and a home office. Considered reverse living this plan affords the homeowner privacy on this level and open space on the second level.   The second floor layout provides 1 bedroom, 1 bath and excellent entertaining from the kitchen, dining room and living room area right through the sliding glass doors out to a great view from the upper balcony.
First Floor   Second Floor


top




This two story modular home was designed to include 1,976 square feet of living space.
Approximately 1,976 sq. ft. — Two Story

A traditional floor plan gives you all the room you need for family gatherings or entertaining guests. Hey, lets all meet on the roof top deck to watch the sunsest!

THE OCEAN GROVE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 988 Bedrooms:4 Raised Foundation
Upper: 988 Full Baths: 2 Width: 22/26'
    Length: 41’

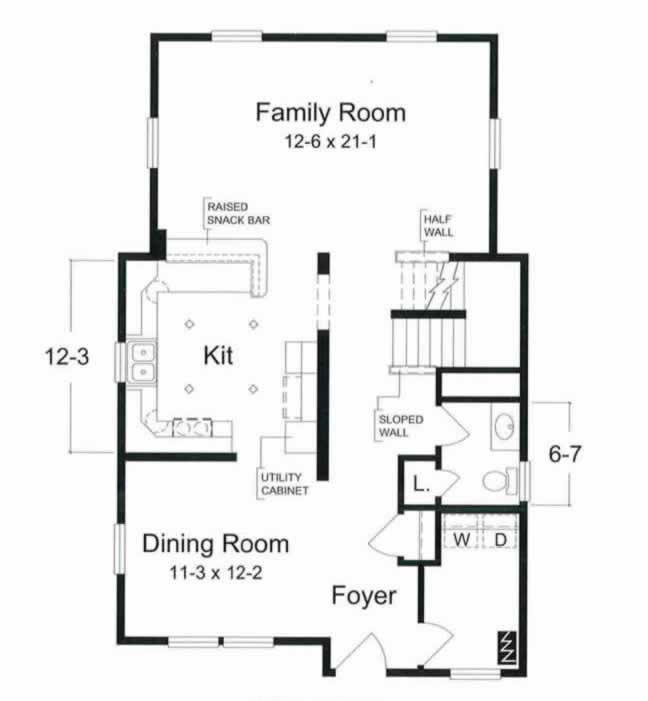

The Ocean Grove coastal designed traditional 2 level modular home contains 1976 square feet of living space 4 bedrooms, 2 ½ baths and a 12ft.-6in. X 21 ft. family room.
FIRST FLOOR

This home will fit comfortably on a 50 foot wide lot, or larger in any Jersey Shore coastal community of Monmouth or Ocean Counties.

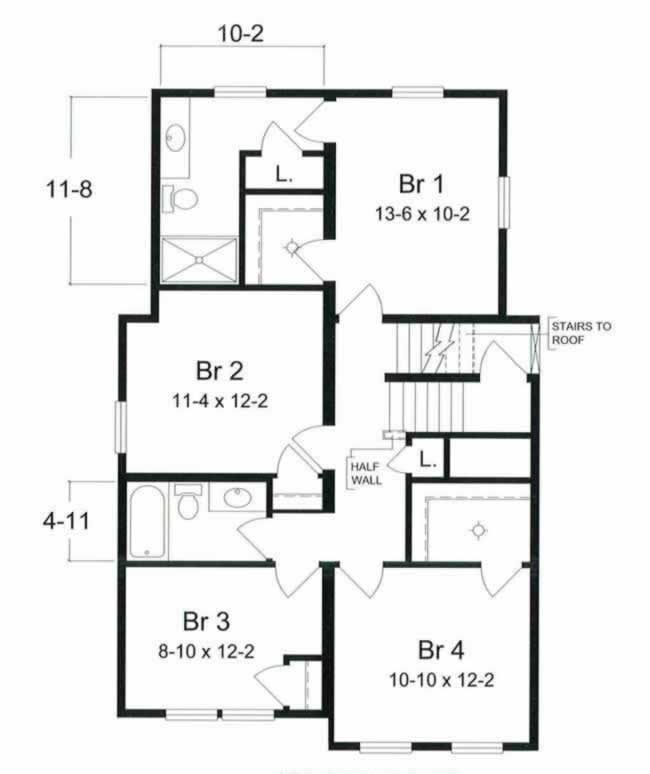

SECOND FLOOR



top




This two story modular home was designed to include 1,990 square feet of living space.
Approximately 1,990 sq. ft. — Two Story

An open floor plan with an oversized family room for casual get togethers and a formal dining room for unforgettable dinner parties complete this four-bedroom 2 1/2 bath home.

THE AVALON
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 995 Bedrooms: 4 Raised Foundation
Upper: 995 Full Baths: 2 Width: 26'
    Length: 38/41’





The Avalon Coastal designed floor plan and elevation is typical of many traditional homes along the Jersey Shore. Features include an oversized family room with an open kitchen and large front porch.

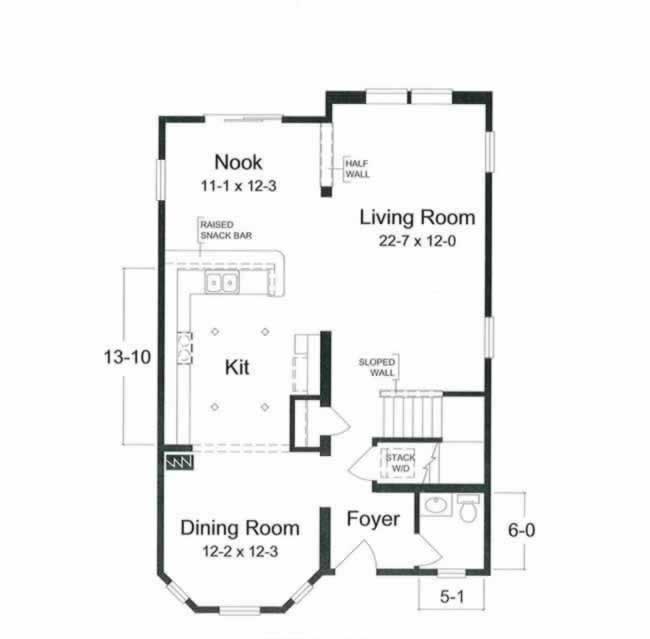

FIRST FLOOR

This two story, 4 bedroom, 2 ½ bath, 1990 square foot home, with lots of kitchen space, lends itself to very casual Monmouth or Ocean County New Jersey  seashore living.

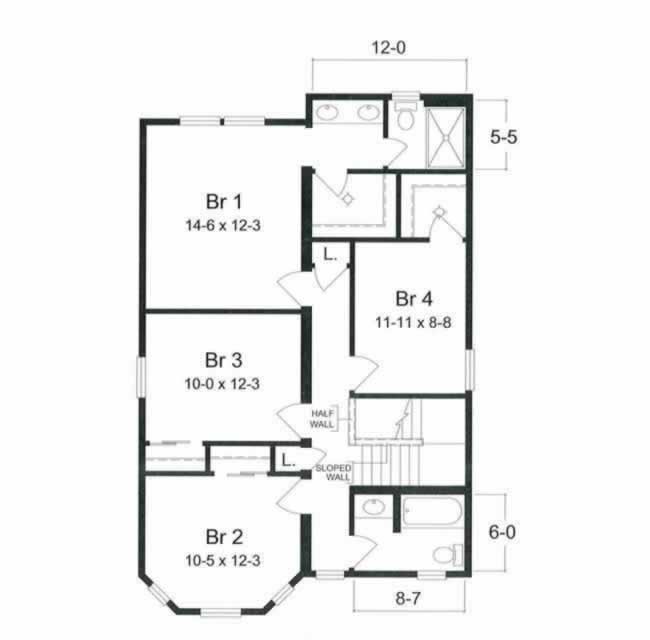

SECOND FLOOR



top




This two story modular home was designed to include 2,486 square feet of living space.
Approximately 2,486 sq. ft. — Two Story

The seaside I features five bedrooms, including two master suites that will provide ample accommodations for friends and family to gather and make memories in this stunning comtempary home.

THE SEASIDE I
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1243 Bedrooms:5 Raised Foundation
Upper: 1243 Full Baths: 3 Width: 31'
    Length: 50’

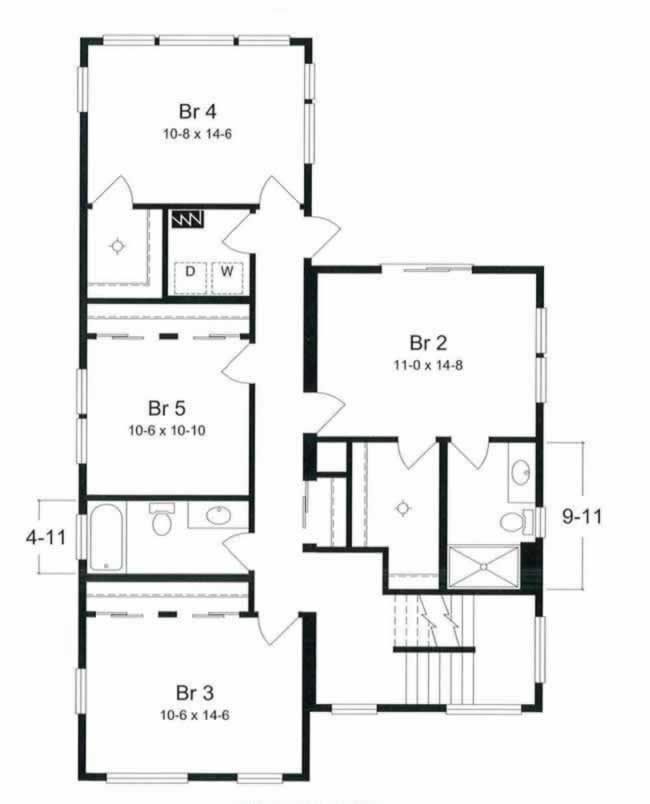

Considered a contemporary style home, the Seaside I is comprised of 4 bedrooms, 2 bathrooms, a laundry area and extra-large closets on the first floor of this 2486 sq. ft. home.
FIRST FLOOR

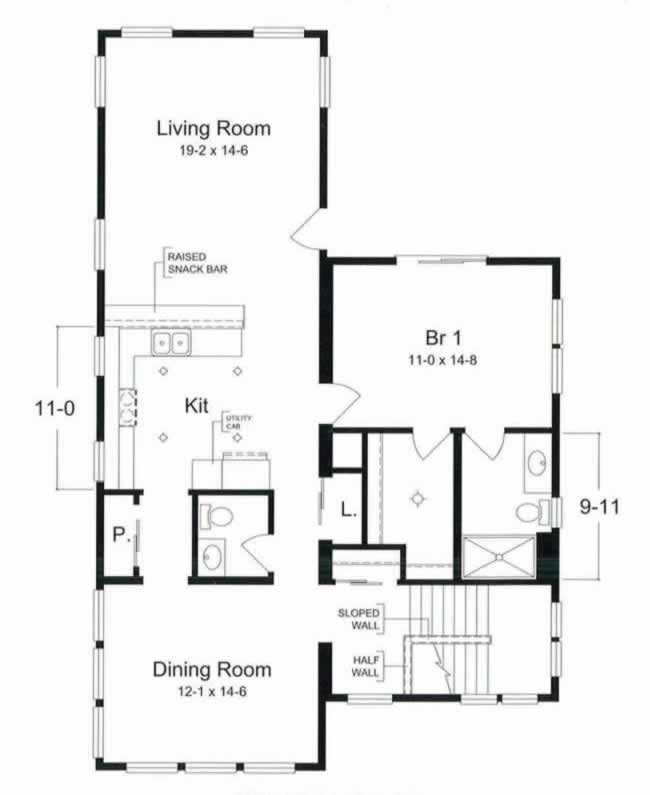

The second floor consists of a large master bedroom and bath as well as 50 feet of open space leading out to excellent views from the balcony.
SECOND FLOOR



top




This two story modular home was designed to include 2,486 square feet of living space.
Approximately 2,486 sq. ft. — Two Story

The Seaside II offers all the same living accommodations as its sister home, The Seaside I, but with a traditional touch. Five bedrooms, a master suite on each floor, formal and casual space, this plan has it all.

THE SEASIDE II
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1243 Bedrooms:5 Raised Foundation
Upper: 1243 Full Baths: 3 Width: 31'
    Length: 50’





The seaside II floor plan is more of a traditional style with a master bedroom and 1 ½ baths on the first floor along with the 50 ft. of open living in the kitchen, dining room and living room area.

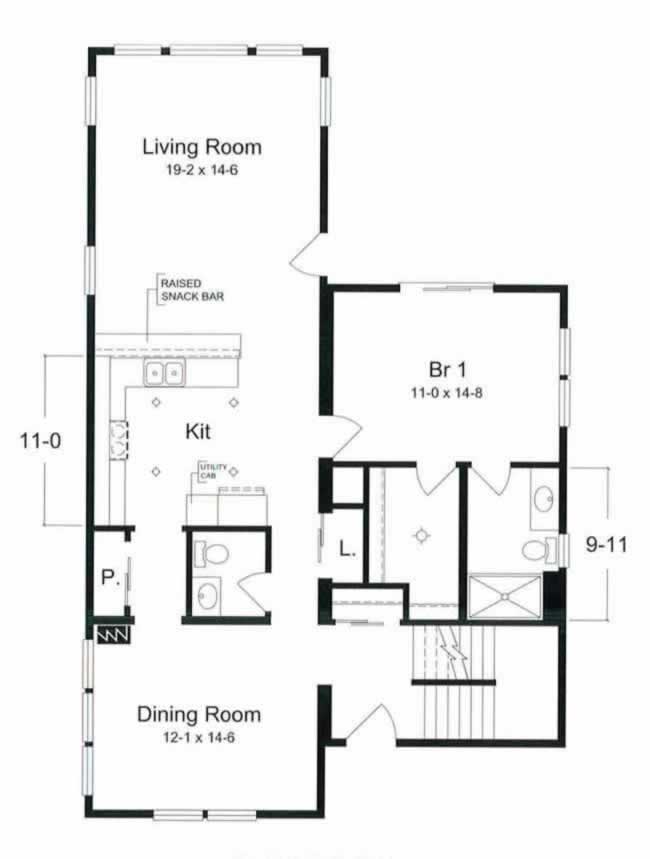

FIRST FLOOR

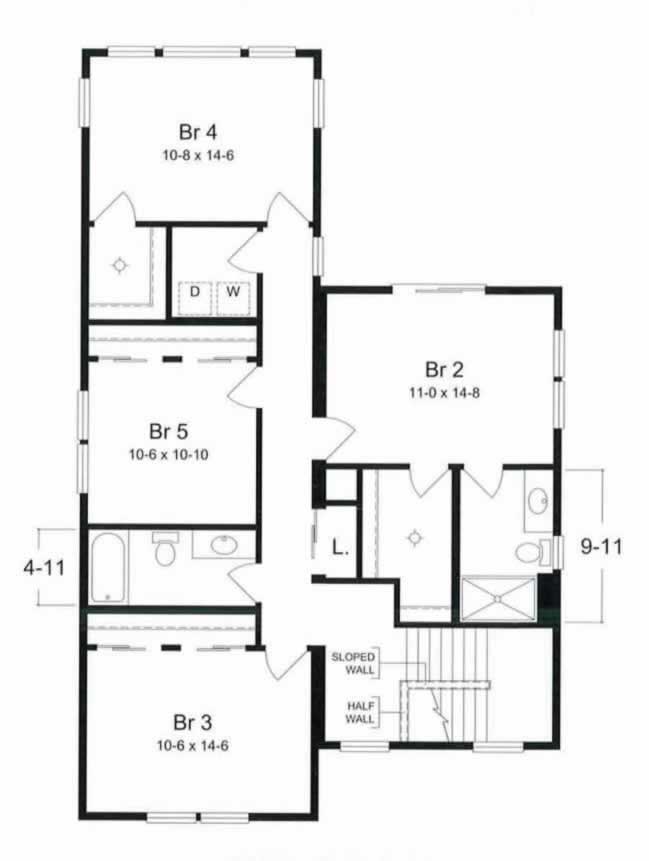

The second floor consisting of 4 bedrooms, 2 baths and the washer drier area enables the homeowner to do the laundry on the upper floor of this approx. 2500 Sq. Ft. home, while entertaining downstairs.
SECOND FLOOR


top




This two story modular home was designed to include 2,545 square feet of living space.
Approximately 2,545 sq. ft. — Two Story

The Belmar Series of homes offer varing elevations to suit a variety of tasks but they all have one thing in common, unparalled space. An open first floor design and a second level recreation area with wet bar. Five bedrooms and 3 1/2 baths make this a great primary or rental home.

THE BELMAR I
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1393 Bedrooms: 5 Raised Foundation
Upper: 1152 Full Baths: 3 Width: 41'-3"
    Length: 40’





The Belmar Series of coastal homes has a super open great room, 2 bedrooms, 2 baths and lots of room for entertaining on the first floor of this 2545 sq. ft. home.   The second floor, consisting of 3 bedrooms, 2 baths, and an extra-large rec room of over 200 square feet leading out to a screened porch of another 288 square feet. This is an excellent floor plan for a large family with lots of friends and relatives.
First Floor   Second Floor


top




This two story modular home was designed to include 2,545 square feet of living space.
Approximately 2,545 sq. ft. — Two Story

The Belmar Series of homes offer varing elevations to suit a variety of tasks but they all have one thing in common, unparalled space. An open first floor design and a second level recreation area with wet bar. Five bedrooms and 3 1/2 baths make this a great primary or rental home.

THE BELMAR II
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1393 Bedrooms: 5 Raised Foundation
Upper: 1152 Full Baths: 3 Width: 41'-3"
    Length: 40’





The Belmar II floor plan is similar to the three floor plans in the Belmar series. The first floor consisting of a large bedroom, great room, dining room and kitchen is differentiated from the others by the porch area replacing one bedroom on this level.   The second floor of this large 2545 sq. ft. home, consisting of 3 bedrooms, 2 baths, an extra-large recreation room of over 200 sq. ft., leading out to the open screened porch provides plenty of room for everyone in the family.
First Floor   Second Floor


top




This two story modular home was designed to include 2,545 square feet of living space.
Approximately 2,545 sq. ft. — Two Story

The Belmar Series of homes offer varing elevations to suit a variety of tasks but they all have one thing in common, unparalled space. An open first floor design and a second level recreation area with wet bar. Five bedrooms and 3 1/2 baths make this a great primary or rental home.

THE BELMAR III
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1393 Bedrooms: 5 Raised Foundation
Upper: 1152 Full Baths: 3 Width: 41'-3"
    Length: 40’





The contemporary look of the Belmar III exterior home plan has the same interior floor plan as the Belmar I. The first floor consists of 2 bedrooms, 1 ½ baths, a washer dryer area as well as a high great room, kitchen and dining room comprising over 1250 sq. ft. on this level.   The second floor consists of an additional 3 bedrooms, 2 baths, large walk in closets, and an oversized recreational room leading to a screened porch area over the great room. This floor plan of 5 bedrooms is ideal for a large family to enjoy living at the Jersey shore.
First Floor   Second Floor


top


Ranch Style modular home for vacation living
Approximately 840 sq. ft. — One Story

A bungalow-style is perfect for Shore weekends. The compact plan design features an open living plan and two generously sized bedrooms, plus an 8' x 13' open deck.

THE SANDPIPER
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 840 Bedrooms: 2 Pilings or Block
  Full Baths: 1 Width: 26’
    Length: 30/34’


Two bedroom ranch, open floor plan


top



This cape model modular home is perfect for shore living.
Approximately 950* sq. ft. — Two Story

This layout is all about potential.  There is ample living space on the first floor and two bedrooms, but an “unfinished” attic can be completed to add additional bedrooms and living space.

THE SEAGULL

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 950 Bedrooms: 2 Pilings or Block
Upper: unfinished attic* Full Baths: 1 Width: 36'
    Length: 26’

* with unfinished 2nd floor that can be finished,
adding 585 square feet of living space on top floor


Open modular floor plan has the potential to be 4 bedrooms with the optional finished 2nd floor


top




Ranch style open modular floor plan.
Approximately 1,000 sq. ft. — One Story

A spacious kitchen/dining area combination make this layout open and appealing, with a kitchen island perfect for entertaining. Three full bedrooms will comfortably accommodate plenty of overnight guests.

THE PELICAN
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1000 sq. ft. Bedrooms: 3 Pilings or Block
  Full Baths: 1 Width: 38’
    Length: 26’


Three bedroom ranch, offers an open kitchen, dining room and living room area great for entertaining


top


Two story open floor plan, perfect for shore living
Approximately 1,350 sq. ft. — Two Story

This house packs a lot into 1,350 square feet with an open first floor plan that overlooks the lagoon. Three bedrooms and two full baths complete this compact design.

THE OSPREY

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 675 Bedrooms: 3 Pilings or Block
Upper: 675 Full Baths: 2 Width: 26’
    Length: 26’


Loads of open space for a large family gathering.
FIRST FLOOR

Compact three bedroom design with convenient 2nd floor washer and dryer
SECOND FLOOR


top




This two story modular home was designed to include 1,800 square feet of living space.
Approximately 1,790 sq. ft. — Two Story

Expansive living space abounds in this two story layout. Some of the amenities include a spacious living room, kitchen peninsula for additional seating and a second floor balcony overlooking the lagoon.

THE HERON
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 895 Bedrooms: 3 Pilings or Block
Upper: 895 Full Baths: 2 Width: 34’
    Length: 26’





Expansive open 1st floor plan provides plenty of room for family gatherings
FIRST FLOOR

Second floor loft and balcony area is a wonderful place to relax on a summer evening.
SECOND FLOOR


top




Coastal Design Collection Floor Plans
Modular Home Floor Plans

RBA Homes
732.747.3800 • 252 Broad Street • Red Bank, NJ 07701
RBAHomes.com
